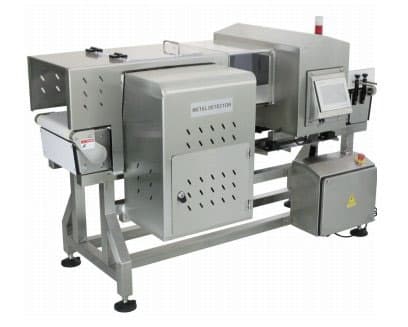

Standard metal detector
Family: Quality control systems · Catalog p. 12
A conveyor metal detector that checks every product passing through its aperture for ferrous, non-ferrous and stainless steel particles.
Technical parameters
- Detector width
- 250 - 350mm
- Detector height
- 100 - 150mm
- Sensitivity Fe
- 0.5 - 0.8mm
- Sensitivity Non-Fe
- 0.7 - 1.0mm
- Sensitivity SUS 304
- 1.0 - 1.5mm
- Belt width
- 180 - 280mm
- Conveyor length
- 1200 - 1500mm
- Max. weight
- 10 - 20kg
- Protection
- IP65
Shown as printed in the catalog.
