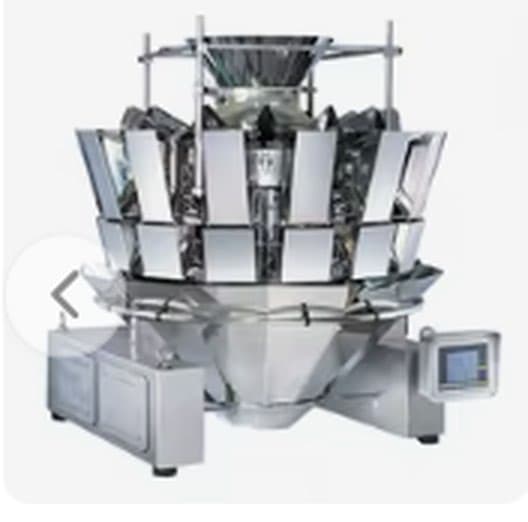

Multihead weigher (standard)
Family: Weighing systems · Catalog p. 7
A combination weigher with 14 heads: it fills its weigh hoppers with part portions and releases the combination that makes up the target weight.
Technical parameters
- Weighing range
- 10 – 2500 g
- Hopper volume
- 1.6 L / 2.5 L
- Speed
- up to 120 weighings/min
- Accuracy
- ±0.1 – 1.5 g
- Protection
- IP65 / SUS304
- Power
- 220V 50Hz, 1.6 kW
- Dimensions
- 1450×1450×1050 mm
Shown as printed in the catalog.
