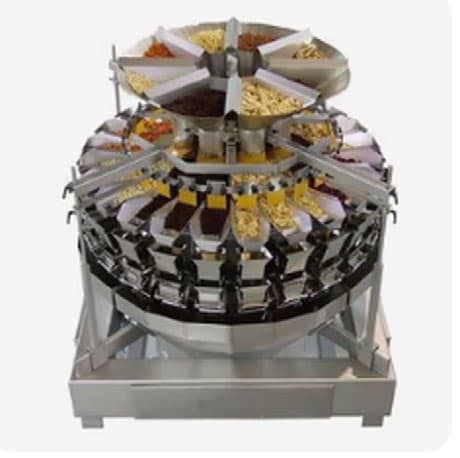

Multihead weigher (advanced)
Family: Weighing systems · Catalog p. 7
A combination weigher with 24 heads in a 2×12 layout that can mix up to 4 products into one weighed portion.
Technical parameters
- Weighing range
- 5 – 3000 g
- Hopper volume
- 1.0 L / 1.6 L
- Speed
- up to 200 weighings/min
- Accuracy
- ±0.1 – 1.0 g
- Configuration
- 2×12, mix up to 4 products
- Protection
- IP66 washdown / SUS316L
- Power
- 220V 50Hz, 2.4 kW
Shown as printed in the catalog.
