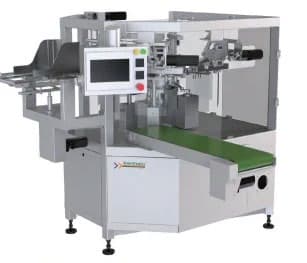

Premade pouch packing machine · 10 stations
Family: Premade pouch packing machines · Catalog p. 6
Takes ready-made pouches and moves them through 10 work stations that open, fill and seal each one.
Technical parameters
- Speed
- ≤100 bags/min
- Bag size
- L: 120-400, W: 90-210mm
- Work stations
- 10 stations
- Format
- Flat bag, Stand-up, Zip
- Air supply
- 5-7kg/cm², 0.4m³/min
- Weight
- ~600Kg
- Power
- 380V/3Phase, 8KW
- Dimensions
- 1900×1340×1520mm
Shown as printed in the catalog.
