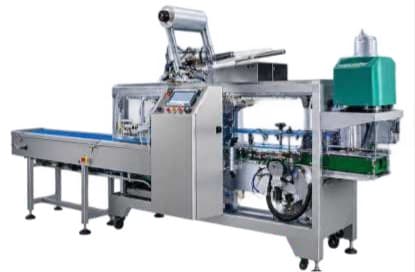

Cartoning machine (8 servo)
Family: Packaging and palletizing systems · Catalog p. 11
An 8 servo cartoning machine for boxes of L150-300, W45-240, H30-100mm: it opens each carton, pushes the product inside and closes the flaps.
Technical parameters
- Speed
- 20-60 boxes/min
- Box size
- L150-300, W45-240, H30-100mm
- Power supply
- AC 380V 50Hz
- Power
- 9.5KW
- Dimensions
- 4470×1815×1918mm
- Air consumption
- 15L/min
- Weight
- 950kg
Shown as printed in the catalog.
